R82 Manatee Bath Seat

Description

Features

Size Chart

More

Letters From Our Therapists

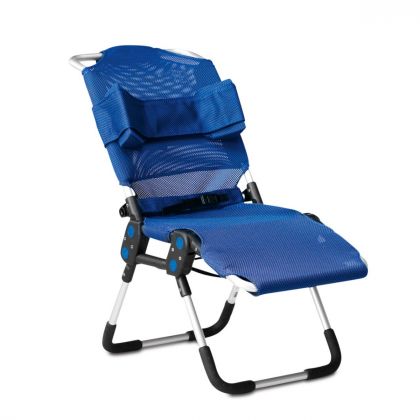

The R82 Manatee is a bath chair designed to support the user with special needs in a sitting or supine (lying down on back) position. Reclining Back and Elevating Leg Rest are independently angle adjustable. The Manatee is available in 4 sizes to accommodate young children through small adults. Please click on Size Chart tab below for more details. Maximum weight capacity for the largest size Manatee frame is 165.3 lbs. (75 kg). This adaptive bath seat is appropriate for users with mild to complex postural support needs.

The Manatee comes standard with Lateral Support Cushions that are height adjustable and can be used for additional head support or for support along the torso. The Manatee also comes standard with a Hip Belt. Extra Lateral Support Pads and a Torso Belt can also be found in the accessories section.

The Manatee Seat is depth adjustable so that it is able to grow with the user. This extends the life of the bath seat for growing children. Seat Back and Seat Leg Rest angles can be set for optimal comfort of the user and the caregiver. The Seat Back can even be reclined with Leg Rest elevated to allow the user to lay flat for care and washing. The base also allows for a variety of heights from the tub floor to decrease caregiver back strain and promote good body mechanics and overall safety during bathing.

The Manatee also has several optional bases that can be purchased in the accessories section. The Tub Stand raises the height of the bath seat an additional 10.5 in. (26.7 cm) from the tub floor. The height adjustable Rolling Shower Frame is perfect for roll-in showers and the Tub Slider Frame allows the child to be placed in the shower seat in the bedroom then rolled to the bathroom where the mobile frame locks into a bridge allowing the seat to be slid across the bridge and onto the stationary frame that sits within the tub. With the Tub Slider frame the Manatee sits over the tub for showering.

The Manatee Bath Seat surface is made from a comfortable, Latex-free, anti-microbial mesh that is both heavy duty and easy-to-clean. Tension of the seat surface is adjustable for user comfort and to allow a hammock effect for sinking down into the seat. The rust resistant legs contain non-skid padding that will ensure the seat is stable and safe even when wet.

Is this Product Right for You?

Standard Features include

to view Etac R82 Manatee User’s Manual!

Folded height

Manatee Bath Seat Tecnical Specifications

Seat depth

8.75" – 9.75" (22.2-24.8cm)

11.75" – 14.5" (29.8-36.8cm)

15.25" – 18" (38.7-45.7cm)

15.75"- 18.5" (40-47cm)

13.75" (34.9cm)

Overall Width

Sizing Chart

Frame width

17" (43.5 cm)

Frame Length

38.5-43.25" (99-111 cm)

Frame Height

23" (59 cm)

38.5" (98 cm)

15” – 19” (38.1-48.3cm)

Height with Chair

30” – 35.5” (76.2-90.2cm)

The Manatee Bath Seat adds an additional 5 – 16.75" of Height. So the Overall Seat Height would equal the Frame Height PLUS the Manatee Seat Height.

• Recommended for young children through small adults with mild to significant physical involvement.
• Height and Angle Adjustable Bath Seat
• Comfortable, Latex-Free, Anti-Microbial Mesh material
• Maximum user weight for largest frame is 165.3 lbs. (75 kg)
• Critical measurements: Thigh depth; Back height to head; Foot to Knee Height
• Rust resistant frame with non-skid padding on legs to ensure the seat is stable and safe even when wet
• Waist/Hip Belt
• Angle Adjustable Back and Leg Rest
• Height Adjustable Lateral Head/Trunk Support Cushions
• Depth Adjustable Seat
• Manatee Bath Seat Tecnical Specifications — Size 0 — Size 1 — Size 2 — Size 3
• Backrest height — 17" (43.2cm) — 17" (43.2cm) — 22.75" (57.8cm) — 25.25" (64.1cm)
• Seat depth — 8.75" – 9.75" (22.2-24.8cm) — 11.75" – 14.5" (29.8-36.8cm) — 15.25" – 18" (38.7-45.7cm) — 15.75"- 18.5" (40-47cm)
• Folded height — 5" (12.7cm) — 5" (12.7cm) — 5" (12.7cm) — 5" (12.7cm)
• Folded length — 40.5" – 43.25" (102.9-109.9cm) — 43" – 46" (109.2-116.8cm) — 53.5" – 56.25" (135.9-142.9cm) — 56.75" – 59.5" (144.1-151.1cm)
• Lower Leg Length — 11" (27.9cm) — 11" (27.9cm) — 13.75" (34.9cm) — 13.75" (34.9cm)
• Bath Seat weight — 12.1 lb. (5.5kg) — 12.1 lb. (5.5kg) — 13.2 lb. (6kg) — 15.4 lb. (7kg)
• Maximum user weight — 110.2 (50kg) — 110.2 (50kg) — 165.3 lb. (75kg) — 165.3 lb. (75kg)
• Overall Width — 16.5" (41.9cm) — 16.5" (41.9cm) — 16.5" (41.9cm) — 19.5" (49.53cm)
• Seat surface height at front edge — 5.5" – 17" (14-43.2cm) — 5.5" – 17" (14-43.2cm) — 5.5" – 17" (14-43.2cm) — 5.5" – 17" (14-43.2cm)
• Sizing Chart — Manatee Tub Frame
• Frame width — 17" (43.5 cm)
• Frame Length — 38.5-43.25" (99-111 cm)
• Frame Height — 10.5" (27 cm)
• Frame Weight — 4.5 lbs. (2 kg)
• Max User Weight — 165 lbs. (75 kg)
• Sizing Chart — Manatee Shower Rolling Frame
• Frame width — 23" (59 cm)
• Frame Length — 38.5" (98 cm)
• Frame Height — 15” – 19” (38.1-48.3cm)
• Height with Chair — 30” – 35.5” (76.2-90.2cm)
• Frame Height Folded — 8" (21 cm)
• Frame Weight — 17.5 lbs. (8 kg)
