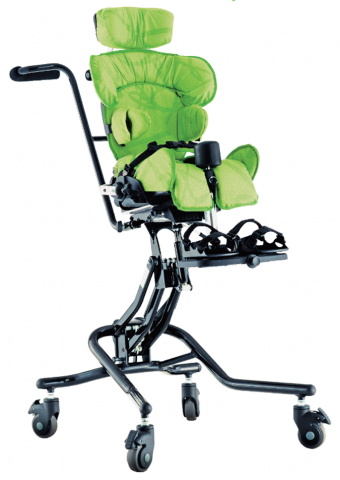

Leckey Squiggles Seat

Description

Features

Size Chart

More

Letters From Our Therapists

The Leckey Squiggles Seating System with Mobile Hi-Low Base provides the ultimate combination of postural support and everyday comfort for young growing children with special needs. Designed for users between 29.5 – 43.3 in. (75-110 cm) in height and up to 48.4 lbs. (22kg), it is recommended for children approximately 1-5 years old. Offering many accessories to customize support, the Squiggles Seat is able to accommodate users with moderate to complex needs without over-supporting. The seat allows for the freedom of movement necessary to reach full developmental potential. It’s the perfect Early Intervention seating solution for home, school and clinic with Foot Pedal Adjustable Seat Height from floor to table. Integrated standard Push Handle on the mobility base with 4 Locking Swivel Casters ensures easy navigation.

The Leckey Squiggles Seating System comes standard with a Height Adjustable Back, Width and Depth Adjustable Seat , Tilt-in-Space (30 degrees back/10 degrees forward) and Back Angle Adjustment (25 degrees recline/ 10 degrees forward from upright). Using the Tilt-in-Space function the user can be tipped back for pressure relief or rest without changing the angle of the hip. Using the Back Recline function the angle of the hip is opened as the back reclines. The Squiggles Seat is lightweight for easy transport and storage, and is upholstered with soft, breathable fabric that is comfortable against the skin and helps prevent irritation or skin breakdown.

In Required Step 2 , you can choose to add a Pelvic Harness . The Four-Point Harness in combination with the system’s standard Flexible Sacral Cushion ensures pelvic comfort and stability. Pelvic stability is the foundation of the optimal seated posture.

In Required Step 3 , you can choose to add the Adjustable Footrest . Weight bearing through the feet and legs further stabilizes the seated posture. The footplate is adjustable in height and angle and flips up and out of the way for transfers.

Please refer to the Accessories Section for many additional support options for the feet, legs, pelvis, trunk, shoulders and/or head. Accessories allow you to customize the Leckey Squiggles Seating System to meet the specific positioning needs of your child.

Is this Product Right for You?

Standard Features include

to view Leckey Squiggles Seat User’s Manual!

• Mobile Hi-Low seating system for children approximately 1 to 5 years old
• Recommended for children with moderate to complex needs
• Maximum User Height 43.3 in.(110cm), Weight 48.4 lbs. (22kg)
• Critical measurements: Hip width, Thigh depth, Back height to shoulders
• Seat Shell with your choice of color for Seat Cushion Covers
• Lateral Hip Guides
• Reclining Back (10 degrees forward to 25 degrees backward)
• Hand Lever Adjustable Tilt-in-Space (10 degrees forward to 30 degrees backward)
• Foot Pedal Adjustable Hi-Low Base (Seat Height from 11.4 – 26.4 in. [29-67cm])
• Push Handle
• 4 Locking Swivel Casters
• 3-Year manufacturer's Warranty
• Age (Approx.) — 1-5 yrs
• User Height Range — 29.5" – 43.3" (75 – 110cm)
• Max User Weight — 48.4 lb. (22 kg)
• Seat Depth (Backrest to back of knee) — 7.5" – 11.4"" (19 – 29cm)
• Seat Width — 6.3" – 10.2" (16 – 26cm)
• Hip Width (Distance between hip guides) — 6.3" – 8.7" (16 – 22cm)
• Backrest height (Sitting Shoulder height) — 12.6" – 15" (32 – 38cm)
• Backrest Height (with shoulder support) — 16.5" – 18.9" (43 – 48cm)
• Chest Width (Distance between laterals) — 6.3" – 8.75" (16 – 22cm)
• Knee Width — 3.5" (9cm)
• Distance between pommel & side of seat — 7.5" (19cm)
• Seat to Footplate (Sole of foot to back of knee) — 4.8" -10.6" (12.3 – 27cm)
• Seat to Floor (Top of seat to floor) — 11.4" – 26.4" (29 – 67cm)
• Backrest Angle Prone — 10 degrees
• Backrest Angle Recline — 25 degrees
• Footplate Angle Plantarflexion — 10 degrees
• Footplate Angle Dorsiflexion — 10 degrees
• Tray Size — 18.1" x 22" (46 x 56cm)
• Seat Weight — 13.2 lbs (6kg)
• Tray Height — 4.5" – 6.7" (11.5 – 17cm)
• Hi Low Chassis Weight — 19.8 lbs (9kg)
• Hi-Low Chasis Length Excluding Push Bar — 25.2" (64cm)
• Minimum Dimemsions for Storage Width — 21.3" (54cm)
