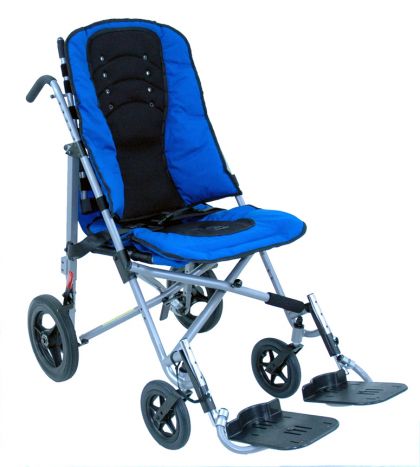

The Convaid EZ Rider is a lightweight, compact folding, and highly durable pushchair designed for users with good trunk strength and upper body stability. It features Self-Tensio® , a built-in self-tensioning seating system that promotes stable pelvic positioning and improves seating tolerance. The EZ Rider's 10-degree fixed tilt supports an upright posture, enhancing the user's functional abilities while seated.

This adaptive stroller offers five years of growth capability through a tool-free seat depth extension system. The Tension Adjustable Strap Back allows for customized back support, conforming to the individual's anatomical shape for optimal comfort and stability.

This push chair comes in four sizes (12, 14, 16, and 18) for users weighing up to 250 lbs. An optional Transit Package is available for users up to 170 lbs., meeting WC19 transport safety standards and allows the EZ Rider to be used with a vehicle’s wheelchair tie down system. The attractive, highly durable EZ Rider also offers numerous positioning accessories for unique support needs and it is made in the USA.

In Step 1 , select your EZ Rider's size and upholstery. You have two primary upholstery options: Convaid Standard Fabric for comfort or Textilene for durability. Convaid Upholstery for sizes 12, 14 and 16 comes with built in Zipper Pockets in the back and sides to add your own additional padding and support if desired. Both fabrics can be upgraded to Heavy Duty Reinforced Upholstery , with some color restrictions. The upholstery is removable, washable, and comes in various colors, which you can preview in the Photo Gallery. Refer to the Size Chart Section to ensure a proper fit with room for growth.

Also in Step 1 , you can purchase the Transit Version of the EZ Rider. This version includes Transit Anchor Brackets for use with vehicles with wheelchair tie-downs. The Headrest Extension, Trunk/Pelvic Positioning options, and Foot Positioners are required for the Transit Version. The EZ Rider's Transit Version has passed WC19 & ISO7176 transport safety standards.

In Step 2 , you'll select Trunk and Pelvic Supports . The EZ Rider includes a 2-Point Positioning Belt as standard, unless you’ve chosen the Transit Model. The Transit Model requires a 3-Point Positioning Belt and your choice of an H-Harness or Full Torso Vest. For Size 12 EZ Rider ONLY a 5-Point Positioning/Restraint Harness can be chosen for children under 50 lbs.

Here are your options for trunk and pelvic support

In Step 3 , you can choose an optional Support Cushion for your EZ Rider. The Upholstery of the Seat Cushion (Textilene Fabric vs. Convaid Fabric) must match the Upholstery you chose for the push chair. Note: If you have a Size 12 EZ Rider Transit Model with the 5-Point Positioning/Restraint Harness, a Support Cushion cannot be used.

Here are your cushion options

* An optional Incontinence Liner can also be added in Step 3. This internal component sits directly beneath the upholstery to protect the foam.

In Step 4 , choose your optional Head Support and/or Headrest Extension. ( Note: The Transit version requires a Headrest Extension. ) See the Photo Gallery for images.

Your head support options are

In Step 5 , you'll select Foot Support s. Refer to the chart below and the Photo Gallery for details. ( Note: The Transit version requires Foot Positioners.)

Your options are

In Step 6 , you'll select your Tire Options . You can view pictures in the Photo Gallery, find standard tire details under the Features Tab and read the Understanding Tires article for guidance. You can also add Front Wheel Caster Locks for 2 in. tires. These improve stability, especially on uneven or loose outdoor terrain, when engaged.

In Step 7 , choose your Push Handle Style : one-piece or two-piece (refer to the Photo Gallery for visuals). The one-piece handle is height and angle adjustable to comfortably fit various height caregivers

Standard Features include

Also Include Standard with the Transit Models

Required for Transit Models

to view Convaid EZ Rider User’s Guide!

*Plus or minus .5 inch (1.27 cm) due to fabric.

**2 inch cut-out for minimum seat depth. Available as an option.

Convaid Footplate Securement Strap

• 5-Point Positioning/Restraint Harness: Available only for EZ Rider Size 12 Transit Model, this crash-tested harness is designed for children under 50 lbs. (23kg) and provides a secure, close fit for transport in a bus or van. Note: This harness is not compatible with Heavy Duty Reinforced Upholstery or a Cushion.
• 3-Point Positioning Belt: This belt, with a depth-adjustable crotch strap, helps maintain proper pelvic position and prevents sliding forward. Note: For Transit Models, this must be purchased with either an H-Harness or a Full Torso Vest.
• H-Harness: Provides anterior trunk support to maintain upper body position and reduce fatigue. Note: H-Harness must be purchased with a 3-Point Positioning Belt.
• Full Torso Vest: Select this for even more trunk support. It helps users maintain correct midline upper body position, prevents slumping, and assists with shoulder retraction. This comfortable and secure vest is easily adjustable and detachable. Note: Choose the vest in the same fabric (Convaid Upholstery or Textilene) as your pushchair.
• General Use Support Cushion*: A soft foam cushion providing extra comfort and support, increasing sitting tolerance.
• Align Cushion – Lateral Pelvis/Lateral Thigh Support*: Features contoured edges for lateral (side) pelvic stability and thigh positioning, reducing side-to-side pelvic movement and improving lower extremity stability. Recommended for users with low muscle tone.
• Position Cushion – Medial Thigh Support/Anti-Thrust*: Offers medial (inside) thigh support, helping to separate legs into neutral alignment to maximize weight-bearing and stabilize seated posture. Recommended for users with increased extensor muscle tone and a tendency toward extensor thrusting.
• Occi-Headwings: Offer sub-occipital (below occiput) support for midline head positioning, comfort, and unobstructed head movement and vision.
• Padded Headwings: Height-adjustable, soft foam headwings provide lateral (side) support for midline head positioning.
• Standard Removable, Height-Adjustable Swing-Away Footplates: These can be moved aside for easier transfers.
• Individual Angle-Adjustable Footplates: The angle can be adjusted to accommodate limitations in ankle/foot range of motion, ensuring proper foot positioning and alignment. They can also be adjusted forward, backward, sideways, or rotated vertically.
• Foot Positioners: Adjustable Velcro® straps properly position feet on footplates, maximizing contact area and alignment. Straps can be placed around the ankle or across the foot. Foot Positioners come in three sizes with circumferential measurements of: Small (7-10 in), Medium (8-11 in), and Large (9-12 in).
• Type — Swing-Away — Angle Adjustment — Depth Adjustment — Flip Up
• Standard- Removable, Height Adjustable Swing-Away Footplates — YES — NO — YES — NO
• Angle Adjustable Footplates — YES — YES (Dorsi/Plantarflexion) — YES — NO
• This is an upright seating stroller with many accessories… folds like an umbrella
• Appropriate for users with mild to moderate disabilities
• “Thigh Depth" should be equal to or greater than the “Seat Depth" (within + or – 1 inch) to promote a proper seating position
• Also pay close attention to “Hip Width", “Seat Back Height", and “User Weight Capacity" for proper sizing
• Silver Powder Coated Frame
• One-Piece Push Handle (Sizes 12, 14, & 16)
• Two-Piece Push Handles (Size 18)
• 10-degree fixed tilt to seat
• 2-Point Positioning Belt
• Removable, Height-Adjustable Swing-away Footplates
• 7.5×2" Front & 11.5×2.5" Rear Solid Tires (Sizes 12, 14, & 16)
• 8”x1” Front & 11”x1” Rear Solid Tires (Size 18)
• Quick-release rear wheels (Sizes 12, 14, & 16)
• Foot Operated Rear Wheel Lock (Sizes 12, 14, & 16)
• Toggle Wheel Locks (Size 18)
• Tool-less Upholstery Removal
• Tension Adjustable Back
• Zippered Pockets in Seat & Back Upholstery (Convaid Upholstery Only: EZ Rider sizes 12/14/16)
• Tool-less Adjustable Seat Depth Growth of 5”
• Self-Tensio®- A built in self-tensioning seating system that provides key support at the pelvis and helps to increase seating tolerance.
• Made in the USA
• Tie-downs
• Headrest Extension
• Upgrade to a 3-Point Positioning Belt with Depth Adjustable Crotch Strap plus your choice of Trunk Positioning options.
• Foot Positioners
• EZ Rider — EZ Rider 12" — EZ Rider 14" — EZ Rider 16" — EZ Rider 18"
• User Weight Capacity (Regular Model) — 75 lbs. (34 kg) — 100 lbs. (45.5 kg) — 170 lbs. (77 kg) — 250 lbs. (114 kg)
• User Weight Capacity (Bus) — 66lbs. (30 kg) — 100 lbs (45.5 kg) — 170 lbs (77 kg) — 170 lbs (77 kg)
• Seat Width* — 12 (30.5 cm) — 14" (35.5 cm) — 16" (40.5 cm) — 18" (45.5 cm)
• Seat Depth** — 9 "-14" (22.9-35.6 cm) — 11"-16" (27.9-40.6 cm) — 12"-17" (30.5-43.2 cm) — 14.5"-19.5" (36.8-49.5 cm)
• Seat Back Height — 21 " (53.3 cm) — 24" (61 cm) — 26 " (66 cm) — 27" (68.6 cm)
• Seat to Footrest — 3 "-20" (7.6-50.8 cm) — 3"-21" (7.6-53.3 cm) — 3"-22" (7.6-55.9 cm) — 3"-22" (7.6-55.9 cm)
• Seat to Floor — 19" (48.3 cm) — 20 " (50.8 cm) — 20" (50.8 cm) — 21.5" (54.6 cm)
• Seat to Back Angle — 100° — 100° — 100° — 100°
• Seat Angle — 10° — 10° — 10° — 10°
• Headrest Extension length — 8" (20.3 cm) — 8" (20.3 cm) — 8" (20.3 cm) — 10" (25.4 cm)
• Shoulder Strap Height Range — 11"-17" (27.9-43.2 cm) — 14 "-20" (35.6-50.8 cm) — 15"-21" (38.1-53.3 cm) — 16"-22" (40.6-55.9 cm)
• Weight of Chair — 25 lbs. (11.4 kg) — 30 lbs. (13.6 kg) — 30 lbs. (13.6 kg) — 29 lbs. (13.2 kg)
• Chair Width — 21.5" (54.6 cm) — 23" (58.4 cm) — 26" (66 cm) — 26" (66 cm)
• Chair Height — 38" (96.5 cm) — 38" (96.5 cm) — 36" (91.4 cm) — 37" (94 cm)
• Chair Length — 39" (99 cm) — 41" (104 cm) — 49" (124.5 cm) — 48" (122 cm)
• Folded Chair Dimensions (LxWxH) — 45.5"x14"x18" (115.6×35.6×45.7 cm) — 45.5"x13.5"x17" (115.6×34.3×43.2 cm) — 45.5"x14"x16" (115.6×35.6×40.6 cm) — 45.5"x13.5"x17" (115.6×34.3×43.2 cm)
