The Convaid Cruiser is a popular, lightweight, and compact folding adaptive stroller designed for individuals with special needs. Its 30-degree fixed seat tilt uses gravity to assist with postural control, making it ideal for users with limited upper body strength. Each Cruiser is custom-built and features Convaid's Self-Tensio® self-tensioning seating system for enhanced sitting tolerance and neutral pelvic positioning. This adaptive stroller offers five years of growth capability through its tool-free seat depth extension system.

This pushchair is lightweight and easy to fold and carry. It comes in five sizes (10, 12, 14, 16, and 18) for users weighing up to 250 lbs. An optional Transit Package is available, meeting WC19 transport safety standards and allows the Cruiser to be used with a vehicle’s wheelchair tie down system. The attractive, highly durable Cruiser also offers numerous positioning accessories for unique support needs and it is made in the USA.

In Step 1 , select your Cruiser's size and upholstery. You have two primary upholstery options: Convaid Standard Fabric for comfort or Textilene for durability. Both can be upgraded to Heavy Duty Reinforced Upholstery, with some color restrictions. The upholstery is removable, washable, and comes in various colors, which you can preview in the Photo Gallery. Refer to the Size Chart Section to ensure a proper fit with room for growth. Convaid Upholstery for sizes 10, 12, 14 and 16 also comes with built-in Zipper Pockets in the back and sides to add your own additional padding and support if desired. Pictures are in the Photo Gallery.

Also in Step 1 , you can purchase the Transit Version of the Cruiser. This version includes Transit Anchor Brackets for use with vehicles with wheelchair tie-downs. The Headrest Extension, Trunk/Pelvic Positioning options, and Foot Positioners are required for the Transit Version. The Cruiser's Transit Version has passed WC19 & ISO7176 transport safety standards.

In Step 2 , you'll select Trunk and Pelvic Supports . The Cruiser includes a 2-Point Positioning Belt as Standard, unless you’ve chosen the Transit Model. The Transit Model requires a 3-Point Positioning Belt and your choice of an H-Harness or Full Torso Vest. For Sizes 10 and 12 Cruiser only a 5-Point Positioning/Restraint Harness can be chosen for children under 50 lbs.

Here are your options for trunk and pelvic support

In Step 3 , you can choose an optional Support Cushion for your Cruiser. The Upholstery of the Seat Cushion (Textilene Fabric vs. Convaid Fabric) must match the Upholstery you chose for the push chair. Note: If you have a Size 10 or 12 Cruiser Transit Model with the 5-Point Positioning/Restraint Harness, a Support Cushion cannot be used.

Here are your cushion options

*An optional Incontinence Liner can also be added in Step 3. This internal component sits directly beneath the upholstery to protect the foam.

In Step 4, choose your optional Head Support and Headrest Extension . ( Note: The Transit version requires a Headrest Extension. ) See the Photo Gallery for images.

Your head support options are

In Step 5 , you'll select Foot Supports . Refer to the chart below and the Photo Gallery for details. ( Note: The Transit version requires Foot Positioners. )

Your options are

In Step 6, you'll select your Tire Options . You can view pictures in the Photo Gallery, find standard tire details under the Features Tab and read the Understanding Tires article for guidance. For all stroller sizes except Size 10, you can add Front Wheel Caster Locks . These improve stability, especially on uneven or loose outdoor terrain, when engaged.

In Step 7 , choose your Push Handle Style: one-piece or two-piece (refer to the Photo Gallery for visuals). Opting for a one-piece handle allows you to add an Attendant Hand Brake . This brake, similar to a bicycle brake, provides controlled mobility on inclines by connecting to the wheel lock. The one-piece handle is also height and angle adjustable to comfortably fit various height caregivers. Please note: The Attendant Handbrake is not available for Size 18 Cruiser .

Is this Product Right for You?

Standard Features include

Also Include Standard with the Transit Models: Tie-downs Required for Transit Models: Headrest Extension Upgrade to a 3-Point Positioning Belt with Depth Adjustable Crotch Strap plus H-Harness with Padded Covers or Full Torso Vest. 5-Point Positioning/Restraint Harness is available for Size 10 & 12 for users less than 50 lbs. Foot Positioners to view Convaid Cruiser User’s Manual!

Required for Transit Models

to view Convaid Cruiser User’s Manual!

• 5-Point Positioning/Restraint Harness: Available only for Cruiser Sizes 10 and 12 Transit Models, this crash-tested harness is designed for children under 50 lbs (23kg) and provides a secure, close fit for transport in a bus or van. Note: This harness is not compatible with Reinforced Upholstery or a Cushion.
• 3-Point Positioning Belt: This belt, with a depth-adjustable crotch strap, helps maintain proper pelvic position and prevents sliding forward. Note: For Transit Models, this must be purchased with either an H-Harness or a Full Torso Vest.
• H-Harness: Provides anterior trunk support to maintain upper body position and reduce fatigue. Note: H-Harness must be purchased with a 3-Point Positioning Belt.
• Full Torso Vest: Select this for even more trunk support. It helps users maintain correct midline upper body position, prevents slumping, and assists with shoulder retraction. This comfortable and secure vest is easily adjustable and detachable. Note: Choose the vest in the same fabric (Convaid Upholstery or Textilene) as your pushchair.
• General Use Support Cushion*: A soft foam cushion providing extra comfort and support, increasing sitting tolerance.
• Align Cushion – Lateral Pelvis/Lateral Thigh Support*: Features contoured edges for lateral (side) pelvic stability and thigh positioning, reducing side-to-side pelvic movement and improving lower extremity stability. Recommended for users with low muscle tone.
• Position Cushion – Medial Thigh Support/Anti-Thrust*: Offers medial (inside) thigh support, helping to separate legs into neutral alignment to maximize weight-bearing and stabilize seated posture. Recommended for users with increased extensor muscle tone and a tendency toward extensor thrusting.
• Occi-Headwings: Offer sub-occipital (below occiput) support for midline head positioning, comfort, and unobstructed head movement and vision.
• Padded Headwings: Height-adjustable, soft foam headwings provide lateral (side) support for midline head positioning.
• Standard Removable, Height-Adjustable Swing-Away Footplates: These can be moved aside for easier transfers.
• Individual Angle-Adjustable Footplates: The angle can be adjusted to accommodate limitations in ankle/foot range of motion, ensuring proper foot positioning and alignment. They can also be adjusted forward, backward, sideways, or rotated vertically.
• Foot Positioners: Adjustable Velcro® straps properly position feet on footplates, maximizing contact area and alignment. Straps can be placed around the ankle or across the foot. Foot Positioners come in three sizes with circumferential measurements of: Small (7-10 in), Medium (8-11 in), and Large (9-12 in).
• Type — Swing-Away — Angle Adjustment — Depth Adjustment — Flip Up
• Standard- Removable, Height Adjustable Swing-Away Footplates — YES — NO — YES — NO
• Angle Adjustable Footplates — YES — YES (Dorsi/Plantarflexion) — YES — NO
• This is a fixed tilt stroller at 30 degrees
• Folds like an umbrella
• Appropriate for children with limited upper body strength and require assistance to sit upright
• “Thigh Depth" should be equal to or greater than the “Seat Depth" (within + or – 1 inch) to promote a proper seating position
• Also pay close attention to “Hip Width", “Seat Back Height", and “User Weight Capacity" for proper sizing

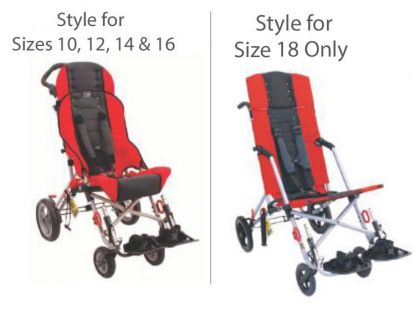

• One-Piece Push Handle (Sizes 10,12,14 & 16)
• Two-Piece Push Handles (Size 18)
• 30 degree fixed tilt to seat
• 2-Point Positioning Belt
• Removable, Height-Adjustable Swing-away Footplates
• 7.5×2" Front & 11.5×2.5" Rear Solid Tires (Sizes 10,12,14 & 16)
• 8” Front & 11” Rear Solid Tires (Size 18)
• Quick-release rear wheels (Sizes 10,12,14 & 16)
• Foot Operated Rear Wheel Lock (Sizes 10,12,14 & 16)
• Toggle Wheel Locks (Size 18)
• Tool-less Upholstery Removal
• Tension Adjustable Back
• Zippered Pockets in Seat & Back Upholstery (Convaid Upholstery Only: Cruiser sizes 10/12/14/16)
• Tool-less Adjustable Seat Depth Growth of 5”
• Self-Tensio®- A built in self-tensioning seating system that provides key support at the pelvis and helps to increase seating tolerance.
• Upgrade to Heavy Duty Reinforced Upholstery available for some color options.
• Made in the USA
• Tie-downs
• Headrest Extension
• Upgrade to a 3-Point Positioning Belt with Depth Adjustable Crotch Strap plus H-Harness with Padded Covers or Full Torso Vest. 5-Point Positioning/Restraint Harness is available for Size 10 & 12 for users less than 50 lbs.
• Foot Positioners
• Convaid Cruiser Textilene / Cordura — Preschool – CX10 — Elementary – CX12 — Pre-Adolescent – CX14 — Adolescent -Teen – CX16 — Adult – CX18
• User Weight Capacity — 75 lb. (34 kg) — 75 lb. (34 kg) — 100 lb. (45.5 kg) — 170 lb. (77 kg) — 250 lb. (114 kg)
• User Weight Capacity – TRANSIT MODEL — 66 lb. (30 kg) — 66 lb. (30 kg) — 100 lb. (45.5 kg) — 170 lb. (77 kg) — 170 lb. (77 kg)
• Seat Width (between arm rests) — 10" (25.4 cm) — 12" (30.5 cm) — 14" (36 cm) — 16" (41) — 18 (46)
• Seat Depth — 6-11" (15-28 cm) — 8-13" (20-33 cm) — 10-15" (25-38 cm) — 11-16" (28-41 cm) — 14-21" (36-53 cm)
• Seat Back Height — 20" (51 cm) T/ 21" (53.3 cm) C — 20" (51 cm) T / 22" (56 cm) — 23" (59 cm) T / 25" (64 cm) — 24" (61 cm) T / 27" (71 cm) C — 25" (64 cm) T / 25" 64 cm) C
• Headrest Extension Height — 6" (15 cm) — 8" (20 cm) — 8" (20 cm) — 8" (20 cm) — 10" (25.4 cm)
• Headrest Position — Height Variable — Height Variable — Height Variable — Height Variable — Height Variable
• Shoulder Strap Height (from top of seat rail to eyelets) — 11-19" (23-48 cm) — 12-20" (30.5-51 cm) — 15-23" (38-58 cm) — 17-25" (43-63.5 cm) — 16-22" (41-56 cm)
• Seat to Footrest (variable) — 5-21" (13-53.3 cm) — 5-25" (13-63.5 cm) — 4-22" (10-56 cm) — 4-22" (25-56 cm) — 8-23" (20-58 cm)
• Seat to Floor — 23" (58.5 cm) — 24" (61 cm) — 22" (56 cm) — 23" (58.5 cm) — 26" (66 cm)
• Seat to Back Angle — 85° 90° 95° — 85° 90° 95° — 85° 90° 95° — 85° 90° 95° — 85° 90° 95°
• Seat Recline Angle — 30° — 30° — 30° — 30° — 30°
• Chair Weight — 27 lb. (12 kg) — 27 lb. (12 kg) — 28 lb. (13 kg) — 32 lb. (14 kg) — 32 lbs. (14 kg)
• Push Handle Height — 28-43" (71-109 cm) — 29-46" (74-117 cm) — 28-45" (71-114 cm) — 31-48" (78-122 cm) — N/A
• Overall Width — 22" (56 cm) — 23.5" (60 cm) — 25.5" (65 cm) — 27.5" (70 cm) — 28.5" (72.4 cm)
• Overall Height — 37" (94 cm) — 38" (97 cm) — 37" (94 cm) — 40" (102 cm) — 38" (97cm)
• Overall Length — 48" (122 cm) — 44" (112 cm) — 49" (124.5 cm) — 52" (132 cm) — 55" (140 cm)
• Folded Width — 15" (38 cm) — 15" (38 cm) — 16" (41 cm) — 16" (41 cm) — 15" (38 cm)
• Folded Height — 17" (43 cm) — 17" (43 cm) — 17" (43 cm) — 17" (43 cm) — 17" (43 cm)
• Folded Length — 47" (119 cm) — 48" (122 cm) — 47" (119 cm) — 53" (135 cm) — 50" (127 cm)
