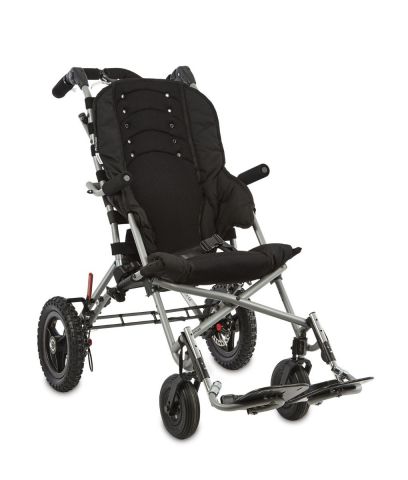

The Convaid Cruiser Scout combines all the great features of the Cruiser – lightweight, compact folding, 30-degree fixed seat tilt with rugged upgrades for families who plan to use their special needs stroller outdoors for off roading excursions. The Scout turns the Cruiser into an all-terrain adaptive push chair that can handle park trails, dirt roads, gravel, hard sand beaches and more!

The Scout comes standard with several features the regular Convaid Cruiser does not

The Cruiser Scout pediatric wheelchair also includes the features of the regular Cruiser like the 30-degree fixed seat tilt which uses gravity to assist with postural control, making it ideal for users with limited upper body strength. The Self-Tensio® self-tensioning seating system enhances sitting tolerance and neutral pelvic positioning which works in conjunction with the Tension Adjustable Back and the Scout’s Anatomic Back designed to provide optimal postural support and comfort with contouring that follows the natural curves of the spine. It also has five years of growth capability through its tool-free seat depth extension system.

The Cruiser Scout comes in four sizes (12, 14, 16, and 18) for users weighing up to 250 lbs. An optional Transit Package is available, meeting WC19 transport safety standards and allows the Cruiser Scout to be used with a vehicle’s wheelchair tie down system. The attractive, highly durable Cruiser Scout also offers numerous positioning accessories for unique support needs and it is made in the USA.

In Step 1 , select your Cruiser Scout’s size and upholstery. You have two primary upholstery choices: Convaid Standard Fabric for comfort or Textilene for durability. Both are Heavy Duty Reinforced Upholstery for the Cruiser Scout. The upholstery is removable, washable, and comes in various colors, which you can preview in the Photo Gallery. Refer to the Size Chart Section to ensure a proper fit with room for growth. Convaid Upholstery for sizes 12, 14 and 16 also comes with built-in Zipper Pockets in the back and sides to add your own additional padding and support if desired. Pictures are in the Photo Gallery.

Also in Step 1 , you can purchase the Transit Version of the Cruiser Scout. This version includes Transit Anchor Brackets for use with vehicles with wheelchair tie-downs. The Headrest Extension, Trunk/Pelvic Positioning options, and Foot Positioners are required for the Transit Version. The Cruiser Scout’s Transit Version has passed WC19 & ISO7176 transport safety standards.

In Step 2 , you'll select Trunk and Pelvic Supports . The Cruiser Scout includes a 2-Point Positioning Belt as Standard, unless you’ve chosen the Transit Model. The Transit Model requires a 3-Point Positioning Belt and your choice of an H-Harness or Full Torso Vest.

Here are your options for trunk and pelvic support

In Step 3 , you can choose an optional Support Cushion for your Cruiser Scout. The Upholstery of the Seat Cushion (Textilene Fabric vs. Convaid Fabric) must match the Upholstery you chose for the push chair.

Here are your cushion options

* An optional Incontinence Liner can also be added in Step 3. This internal component sits directly beneath the upholstery to protect the foam.

In Step 4 , choose your optional Head Support and Headrest Extension. (Note: The Transit version requires a Headrest Extension.) See the Photo Gallery for images.

Your head support options are

In Step 5 , you'll select Foot Supports . Refer to the chart below and the Photo Gallery for details. (Note: The Transit version requires Foot Positioners.)

Your options are

In Step 6 , you'll select your Tire Options . You can view pictures in the Photo Gallery, find standard pneumatic tire details under the Features Tab and read the Understanding Tires article for guidance. You can also add Front Wheel Caster Locks. These improve stability, especially on uneven or loose outdoor terrain, when engaged.

In Step 7 , choose your Push Handle Style: one-piece or two-piece (refer to the Photo Gallery for visuals). The Cruiser Scout comes standard with an Attendant Hand Brake(s). Similar to a bicycle hand brake, they help control forward motion on inclines by connecting to the wheel lock. The one-piece handle is also height and angle adjustable to comfortably fit various height caregivers.

Is this Product Right for You?

Standard Features include

Also Included Standard with the Transit Models

Required for Transit Models

to view Convaid Cruiser User’s Manual!

• Anatomic Back
• Flip-Up Armrests
• 8" x 2" Front Pneumatic Ribbed Tires
• 12.5" x 2” Rear Pneumatic Knobby Tires
• Attendant Hand Brake(s)
• Heavy-Duty Reinforced Upholstery
• 3-Point Positioning Belt: This belt, with a depth-adjustable crotch strap, helps maintain proper pelvic position and prevents sliding forward. Note: For Transit Models, this must be purchased with either an H-Harness or a Full Torso Vest.
• H-Harness: Provides anterior trunk support to maintain upper body position and reduce fatigue. Note: H-Harness must be purchased with a 3-Point Positioning Belt.
• Full Torso Vest: Select this for even more trunk support. It helps users maintain correct midline upper body position, prevents slumping, and assists with shoulder retraction. This comfortable and secure vest is easily adjustable and detachable. Note: Choose the vest in the same fabric (Convaid Upholstery or Textilene) as your pushchair.
• General Use Support Cushion*: A soft foam cushion providing extra comfort and support, increasing sitting tolerance.
• Align Cushion – Lateral Pelvis/Lateral Thigh Support*: Features contoured edges for lateral (side) pelvic stability and thigh positioning, reducing side-to-side pelvic movement and improving lower extremity stability. Recommended for users with low muscle tone.
• Position Cushion – Medial Thigh Support/Anti-Thrust*: Offers medial (inside) thigh support, helping to separate legs into neutral alignment to maximize weight-bearing and stabilize seated posture. Recommended for users with increased extensor muscle tone and a tendency toward extensor thrusting.
• Occi-Headwings: Offer sub-occipital (below occiput) support for midline head positioning, comfort, and unobstructed head movement and vision.
• Padded Headwings: Height-adjustable, soft foam headwings provide lateral (side) support for midline head positioning.
• Standard Removable, Height-Adjustable Swing-Away Footplates: These can be moved aside for easier transfers.
• Individual Angle-Adjustable Footplates: The angle can be adjusted to accommodate limitations in ankle/foot range of motion, ensuring proper foot positioning and alignment. They can also be adjusted forward, backward, sideways, or rotated vertically.
• Foot Positioners: Adjustable Velcro® straps properly position feet on footplates, maximizing contact area and alignment. Straps can be placed around the ankle or across the foot. Foot Positioners come in three sizes with circumferential measurements of: Small (7-10 in), Medium (8-11 in), and Large (9-12 in).
• Type — Swing-Away — Angle Adjustment — Depth Adjustment — Flip Up
• Standard- Removable, Height Adjustable Swing-Away Footplates — YES — NO — YES — NO
• Angle Adjustable Footplates — YES — YES (Dorsi/Plantarflexion) — YES — NO
• This is a fixed tilt stroller at 30 degrees
• Folds like an umbrella
• Designed with heavy-duty features for all-terrain use
• Appropriate for children with limited upper body strength and require assistance to sit upright
• “Thigh Depth" should be equal to or greater than the “Seat Depth" (within + or – 1 inch) to promote a proper seating position
• Also pay close attention to “Hip Width", “Seat Back Height", and “User Weight Capacity" for proper sizing
• One-Piece Push Handle (Sizes 12,14 & 16)
• Two-Piece Push Handles (Size 18)
• 30-degree fixed tilt to seat
• 2-Point Positioning Belt
• Removable, Height-Adjustable Swing-away Footplates
• Pneumatic Tires- 8” x 2" Front Ribbed & 12.5" x 2" Rear Knobby
• Foot Operated Rear Wheel Lock (Sizes 12,14 & 16)
• Toggle Wheel Locks (Size 18)
• Tool-less Upholstery Removal
• Zippered Pockets in Seat & Back Upholstery (Convaid Heavy Duty Upholstery Only: Cruiser Scout sizes 12/14/16)
• Tool-less Adjustable Seat Depth Growth of 5”
• Self-Tensio®- A built-in self-tensioning seating system that provides key support at the pelvis and helps to increase seating tolerance.
• Tension Adjustable/Anatomic Back
• Height Adjustable Flip Up Arm Rests
• Heavy Duty Reinforced Upholstery
• Silver Powder Coated Frame
• Made in the USA
• Tie-downs
• Headrest Extension
• Upgrade to a 3-Point Positioning Belt with Depth Adjustable Crotch Strap plus H-Harness with Padded Covers
• Foot Positioners
• Convaid Cruiser Scout — Cruiser Scout 12" — Cruiser Scout 14" — Cruiser Scout 16" — Cruiser Scout 18"
• Target User Age — 3 to 7 years — 7 to 12 years — 11 years to adult — 15 years to adult
• Seat Width (between armrests) — 12" (30.5 cm) — 14" (35.5 cm) — 16" (40.5 cm) — 18" (45.5 cm)
• Seat Depth — 8" – 13" (20 – 33 cm) — 10" – 15" (25 – 38 cm) — 11" – 16" (28 – 41 cm) — 14" – 21" (36 – 53 cm)
• Seat Depth w/Support Position or Align Cushion — 8" – 13" (20 – 33 cm) — 9" – 14" (23 – 36 cm) — 10" – 15" (25 – 38 cm) — 13" – 20" (33 – 51 cm)
• Seat Back Height — 20" (51 cm) — 22.5" (57 cm) — 25" (63.5 cm) — 24" (61 cm)
• Seat to Footplates (min/max) — 4 – 25" (10 – 63.5 cm) — 3 – 23" (7.5 – 59 cm) — 5.5 – 22.5" (14 – 57 cm) — 10 – 24" (25 – 61 cm)
• Seat to Floor — 22" (56 cm) — 22" (56 cm) — 22" (56 cm) — 23" (58.5 cm)
• Seat to Back Angle — 85° 90° 95° — 85° 90° 95° — 85° 90° 95° — 85° 90° 95°
• Seat Angle from Horizontal — 30° — 30° — 30° — 30°
• Headrest Extension — 8" (20 cm) — 8" (20 cm) — 8" (20 cm) — 8" (20 cm)
• Weight of Chair (without footplates) — 31 lbs. (14 kg) — 32 lbs. (14.5 kg) — 35 lbs. (16 kg) — 38 lbs. (17 kg)
• Open Dimensions (W x H x L) — 24.5x37x51" (62x94x129.5 cm) — 26x38x54" (66×96.5×137 cm) — 28x39x55" (71x99x139.5 cm) — 30.5x39x56" (77.5x99x142 cm)
• Folded Dimensions (W x L x H) — 16×52.5×16.5" (133×40.5×42 cm) — 16x52x15.5" (132×40.5×39 cm) — 16x55x15" (140×40.5×38 cm) — 16x57x16.5" (145×40.5×42 cm)
• Weight Capacity (Regular model/ Transport model) — 75 lbs.(34 kg)/ 66 lbs.(30 kg) — 100 lbs. (45.5 kg) — 170 lbs. (77 kg) — 250 lbs.(114 kg)/ 170 lbs.(77 kg)
• Shoulder Strap Height — 12-18" (30.5-45.5 cm) — 14-20" (33.5-51 cm) — 12.5-22.5" (32-57 cm) — 16-22" (40.5-56 cm)
